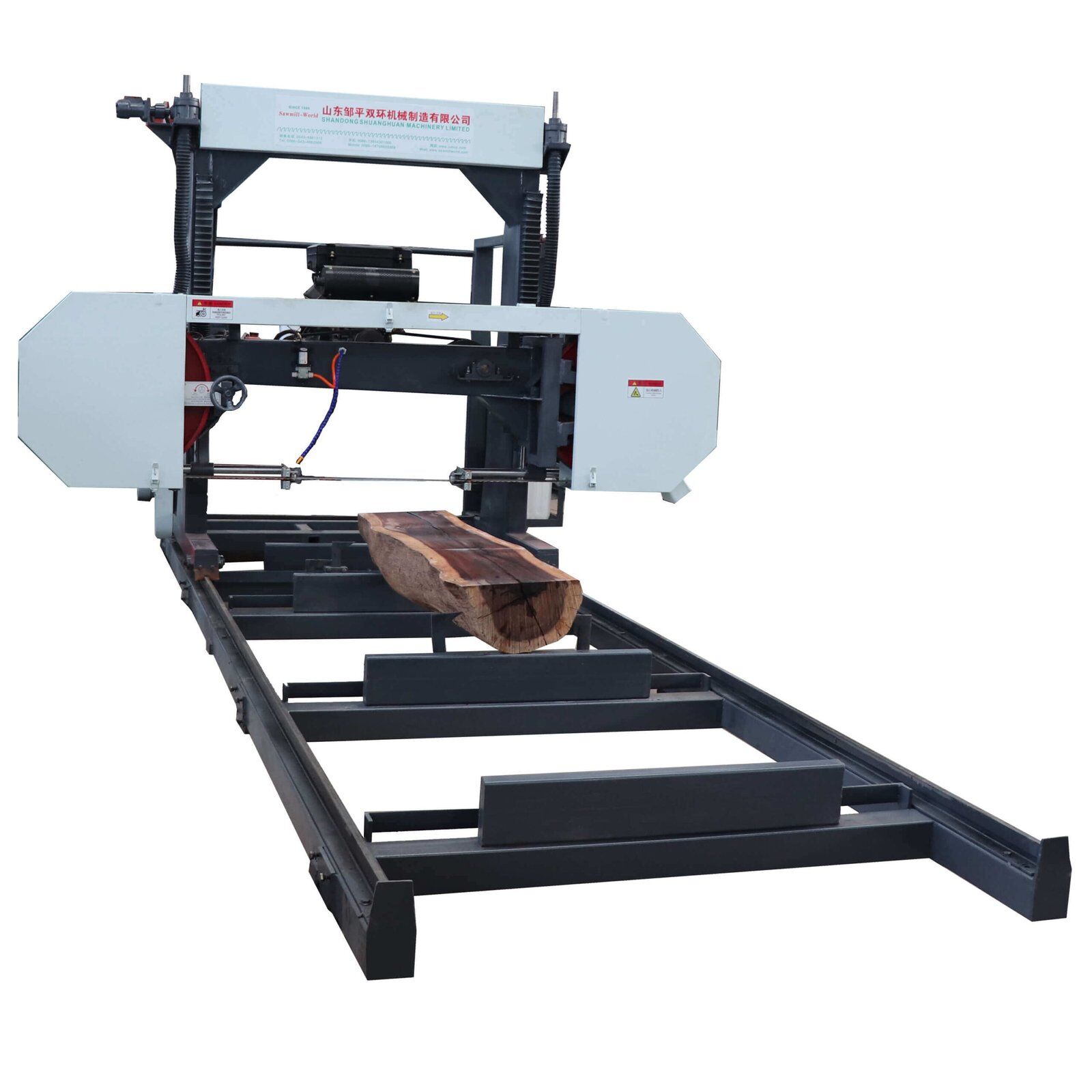

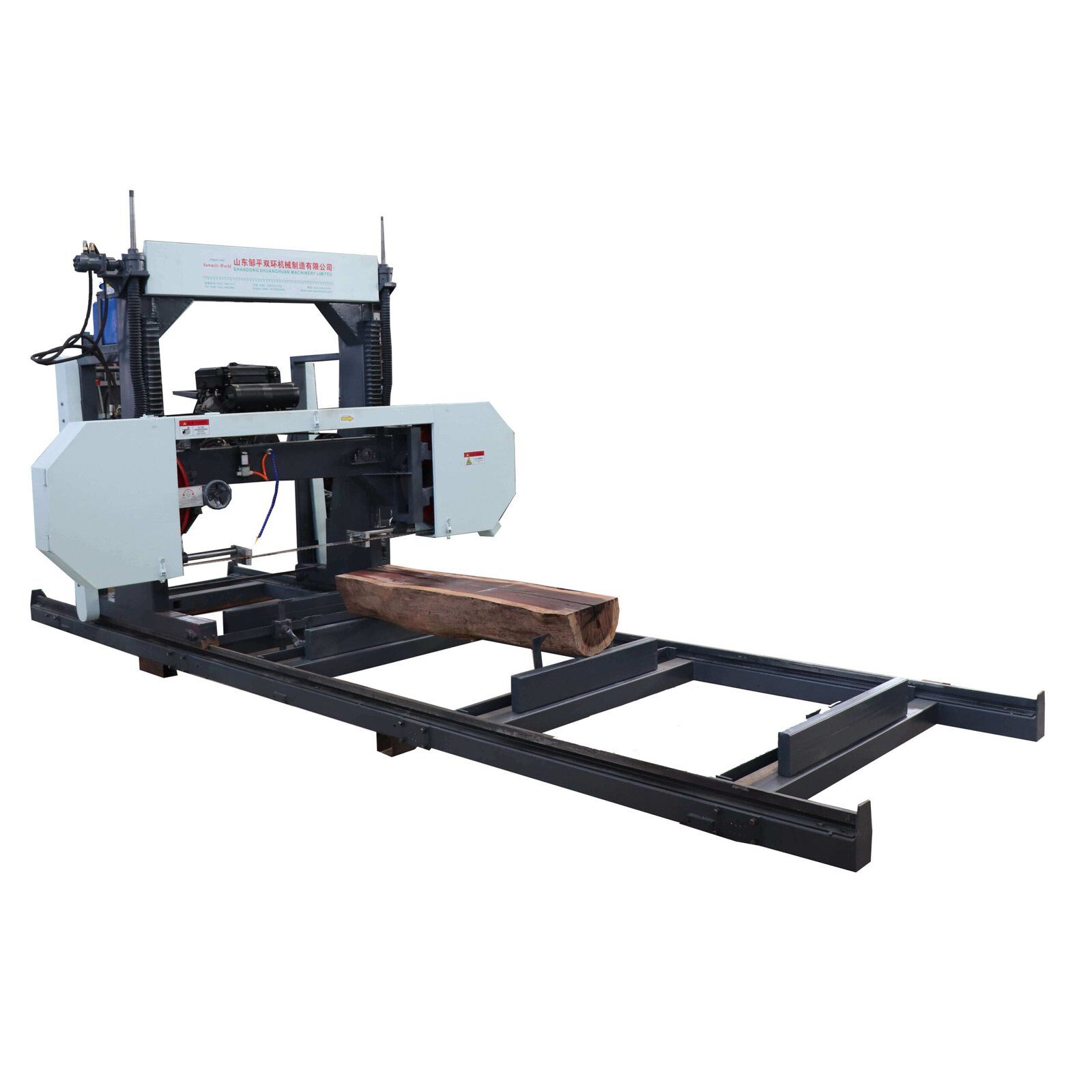

Sawyer Portable Horizontal Sawmill

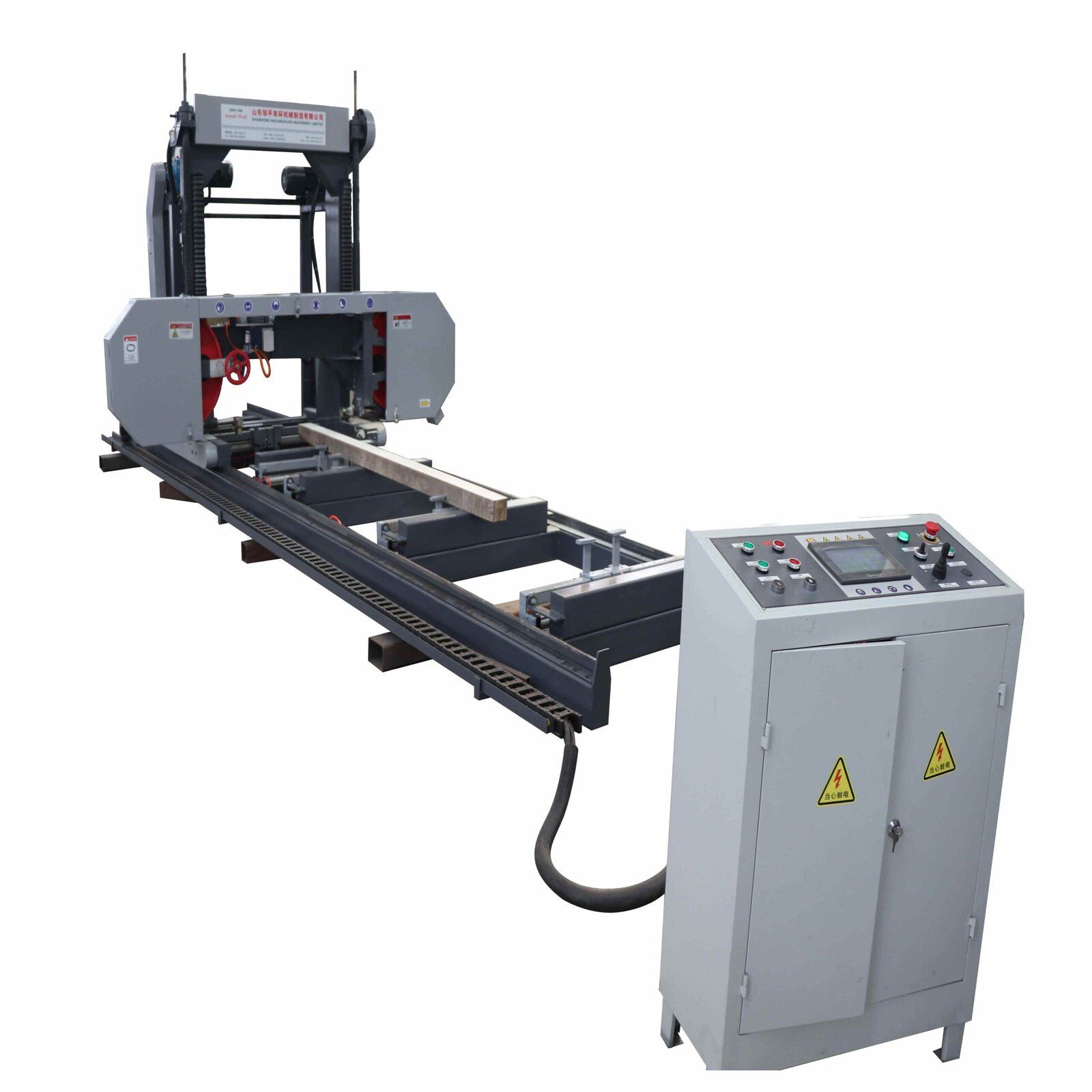

Sawyer portable horizontal series sawmill with powerful Electricity&Diesel engines, from 28-inch(70cm) to 63-inch(160cm)log diameter,  15 feet standard log length, they are friendly priced for any woodworkers not only personal-sized but massive sawmill factory. Optional rail track extensions, optional mobile trailer and optional CNC controller to start your sawing anytime, anywhere.

Product Details:

This series sawmill includes 4 models: MJ700, MJ1000, MJ1300 and MJ1600, log capacity MJ700-28″(70cm), MJ1000-40″(100cm), MJ1300-51″(130cm), MJ1600-63″(160cm) in diameter and 15feet in basic length, both electric motor and diesel engine are available. The saw head using four-post design and strong steel structure to ensure the smooth and precise cuts, easy to moves up/down by a hand crank system Or Hydraulic system. The portable horizontal band saw is simple to install and operate, bigger woodcut but the economic offer will be a perfect choice for budget-minded customers whether entrepreneur or landowner. They are super-duty working in forest yard by simple&easy to use&maintain.

Features | Sawyer Portable Horizontal Series Sawmill

Massive Log Capacity

Cut massive log up to 63″ (160cm) in diameter and 15′(4.5m) in length with the standard track, with optional track extensions will saw longer lengths without any practical limited, it’s the largest cutting capacity to be the best value in class, help you to mill virtually any hardwood or softwood into priced lumber.

Strong Mill Structure

Made in China from high-quality steel, 4-post design and solid casting techniques to make the sawmill has a solid structure to afford to cut very hardwood smoothly. Linear guide rails and precision screws ensure a smooth and accurate setting. The centre wheel of the saw wheel is designed for more stable operation and longer service life, reducing the chance of blade breakage. Hydraulic tensioning of the saw blade to extend its life. Wear-resistant saw wheels are then dynamically balanced to ensure smooth running.

Powerful Diesel or Electric sawmill

The powerful and reliable diesel engines 22HP(MJ700), 22HP(MJ1000), 25HP(MJ1300), 27HP(MJ1600) with electric-start feature premium air filter to protect engine works as usual even in harsh and dirty sawing conditions, Clutch for engine protection and easy blade change, Hydraulic motor to raise and down the sawhead. Electric motors are available when you operate in a place with stable electricity.

Quick-Set Log Works

Produced of solid-tube steel, the quick-set log clamp fastens wood tightly for cutting and can be adjustable up/down in sawing proceed. Optional Automatic clamp makes it one-person operation.

Fast Change Blade

Sawhead cover was closed by 2 outside fasters when you want to change a blade, just open the cover, replace a new blade then tension the blade, that’s it! Nothing moves nothing extra parts.

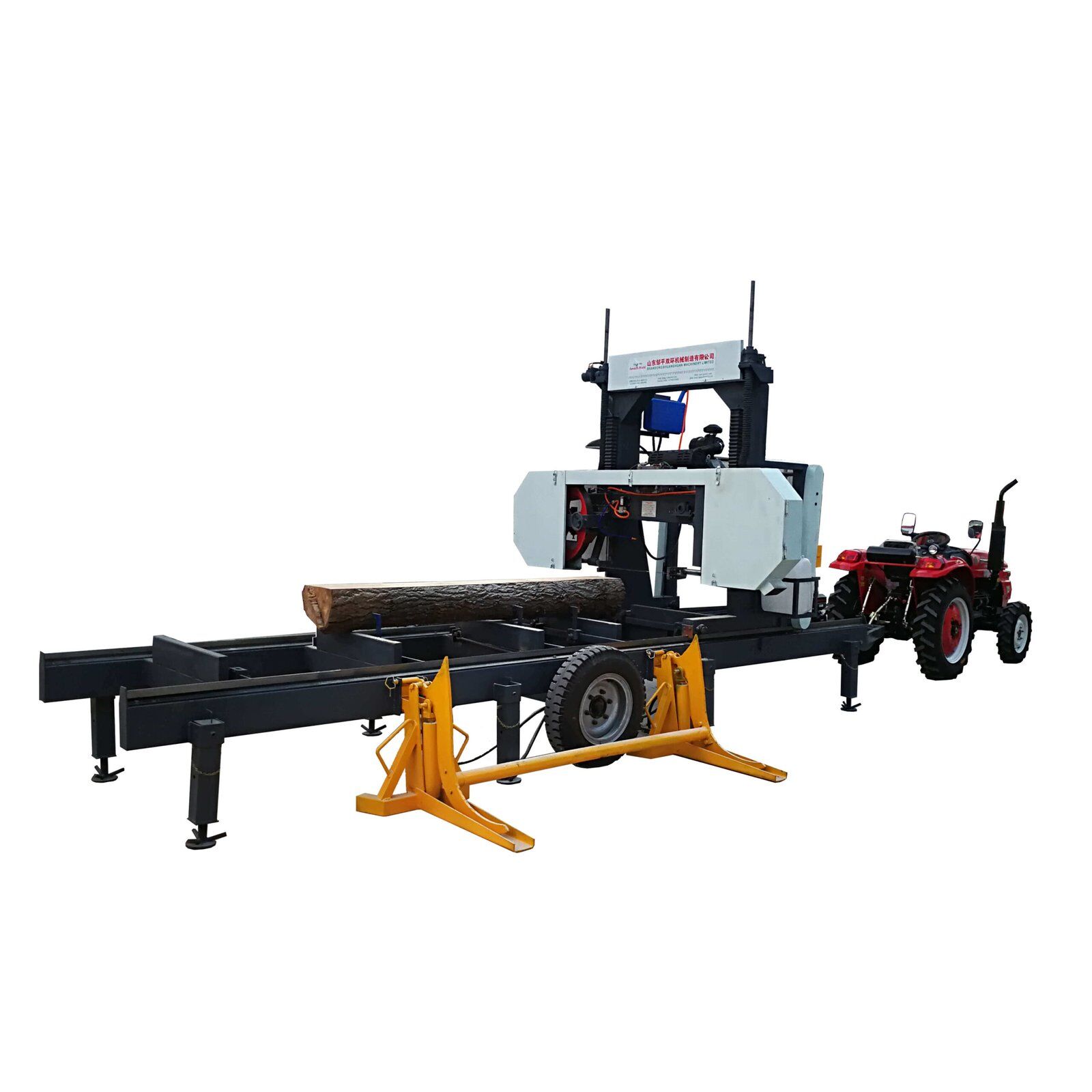

Mobile trailer

Sawmill can be moved between places with a mobile trailer,  from home to work site, from storage to lumber yard, it’s a PORTABLE WORKABLE SAWMILL.

Warranty and Customer Service

2 Years Warranty of both Sawmill and Motors. You will receive fast response to any question on Operation/Installation/Spare Parts.



Additional information

Log Diameter

28"(70cm)-MJ700, 40"(100cm)-MJ1000, 51"(130cm)-MJ1300, 63"(160cm)-MJ1600

Log Length

15feet Standard

Track Extension Length

Unlimited

Power

15KW(MJ700),18.5KW(MJ1000),22KW(MJ1300),30KW(MJ1600)

Power Option

22HP(MJ700), 22HP(MJ1000), 25HP(MJ1300), 27HP(MJ1600)

Saw Wheel Diameter

60CM(MJ700),70CM(MJ1000/1300/1600)

Sawhead Forward/Reverse

Manual Crank

Sawhead Up/Down

Electric Motor for Standard Power), Hydraulic System for Optional Power

Log Clamp

5xQuick-set

Sawhead Design

4-Post Tech

Blade Size

216"x3.15"(5500x80mm)

Mobile Trailer

Yes

Weight

1100KG/MJ700,1100KG/MJ1000,1300KG/MJ1300,1500KG/MJ1600

Warranty

2 Years Sawmill&Engine
