Vertical Band Saws with Log Carriage
Traditional cutting method in the sawmill industry to mill tropical logs into lumber, including headrig and log carriage(Manual/Semi-automatic/Automatic carriage), for max 60inches(150cm) in diameter 6m in standard length. Since portable sawmill is more and more popular but lots of customers like vertical saws from South American and Africa.
Product Details:

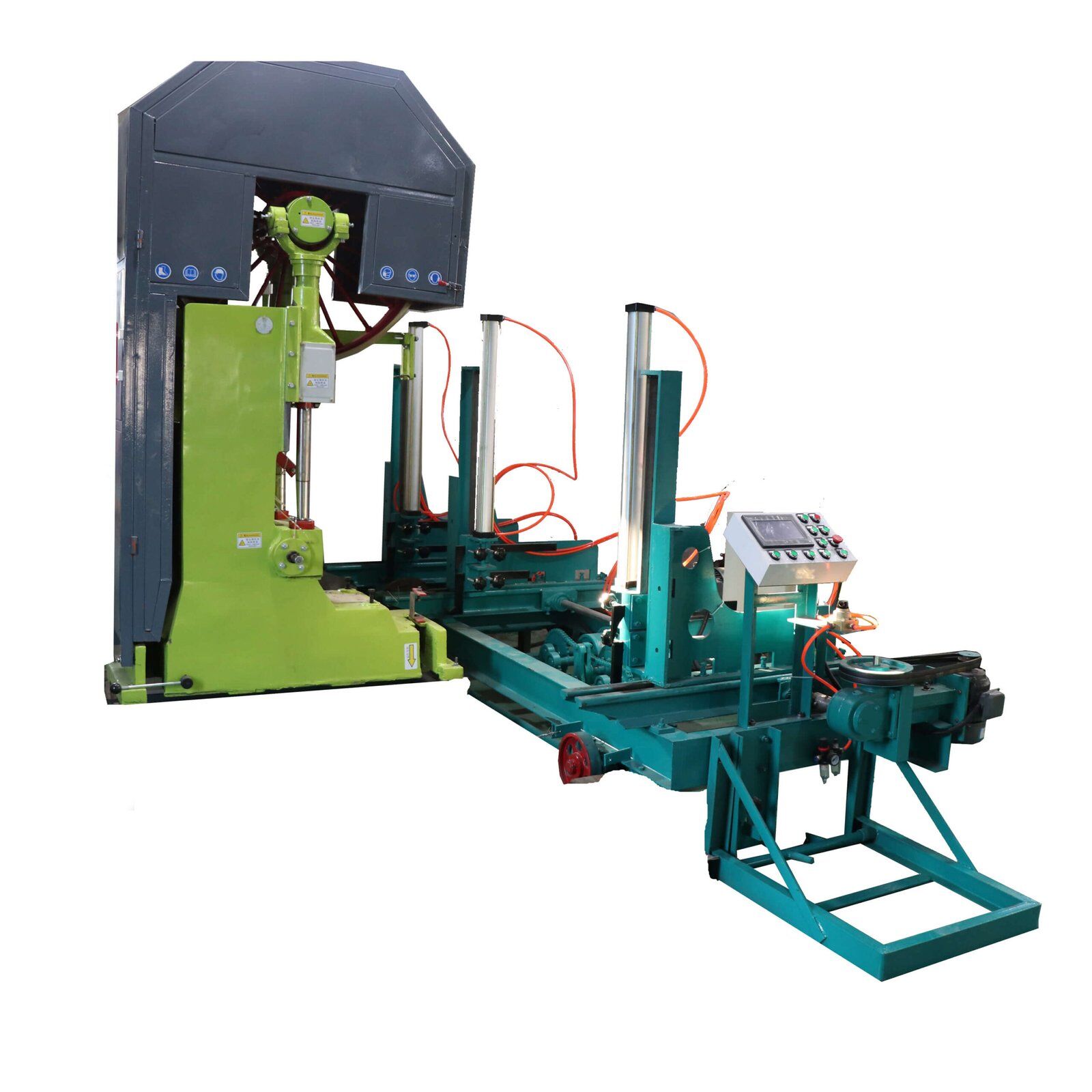

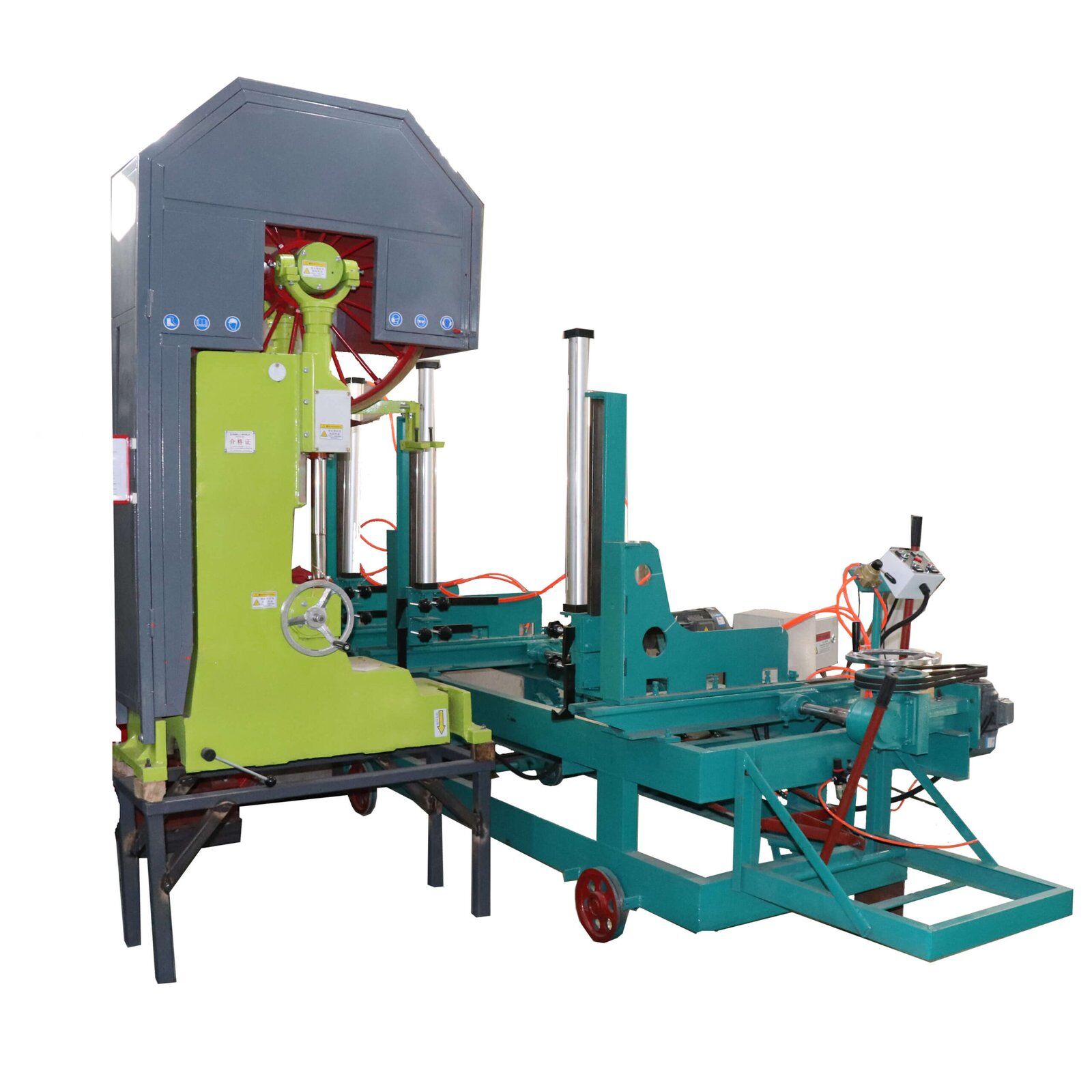

The vertical band saw with log carriage has a wide range to wood diameters in sawing. It works by fixing the headrig in a position where the carriage travels in front of it by means of a wire rope or motor driven reciprocation and snaps the logs onto the woodworking carriage to saw into dimensions customer specified. This processing method is convenient and efficient, and how to choose right saw head and carriage based on the different diameters&lengths of the customer’s wood. Meanwhile the traditional carriage can be operated manually, semi-automatically or fully automatically. The way of clamping wood is divided into manual/electric/pneumatic
Features
Saw wheel was made of weld-steel plate with quality protective deck, fixed headrig and balancing system keep sawed wood accurate diametion and smooth surface during cutting.
The linear bearing and tensioning system at the upper/down saw wheel will respond faster and accurately to the changes of saw blade tensioning

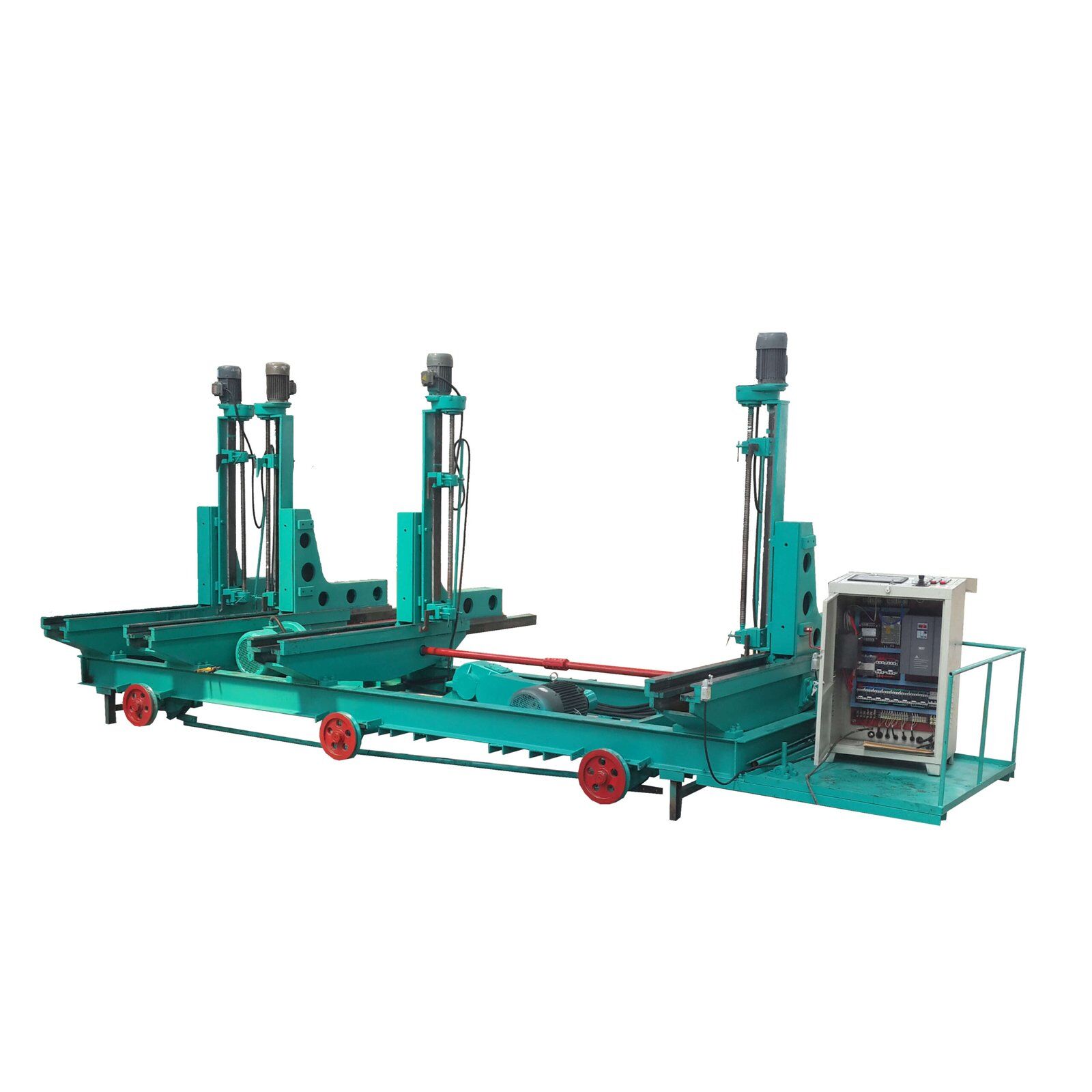

Log carriage with series running method-Manual one cheap but durable, automatic one afforable but higher productive is available to all customers, whether you are the person start milling Or professional sawmill factory.
Manual lubrication
Additional information
| Log Diameter | 27"(70cm), 31"(80cm), 40"(100cm), 60"(150cm) |
|---|---|
| Log Length | 6m |
| Power | 18.5KW, 22KW, 30KW, 45KW |
| Saw Wheel Up/Down | Electronic |
| Saw Wheel Diameter | 900mm, 1000mm, 1070mm, 1250 |
| Log Carriage Length | 3m, 5m |
| Carriage Forward/Reverse | Variable Speed |
| Wood Clamping Hooks | Manualx3, Electricx4 |
| Setworks | Manual, Electric, Touch Screen Computer |
