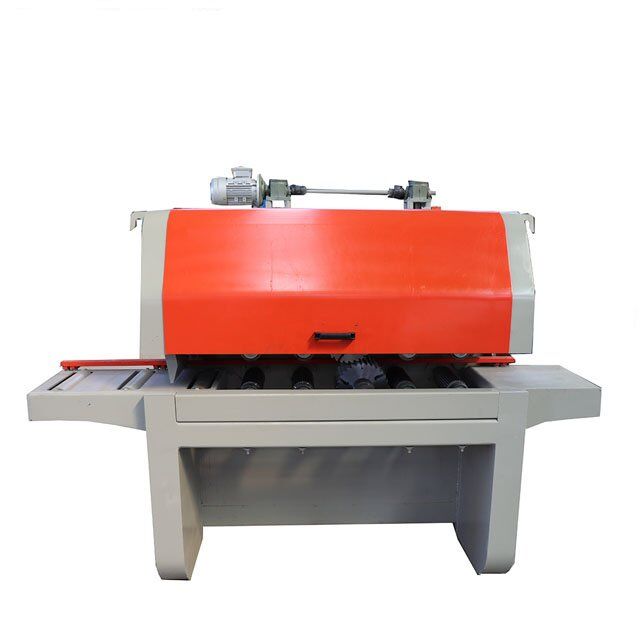

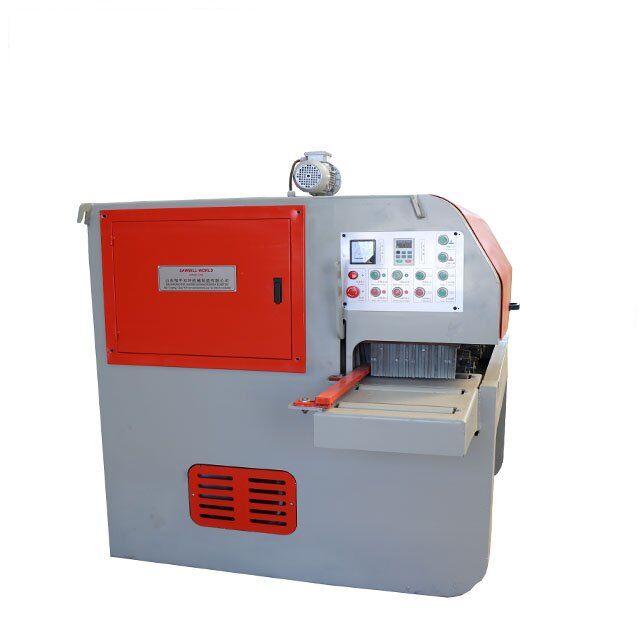

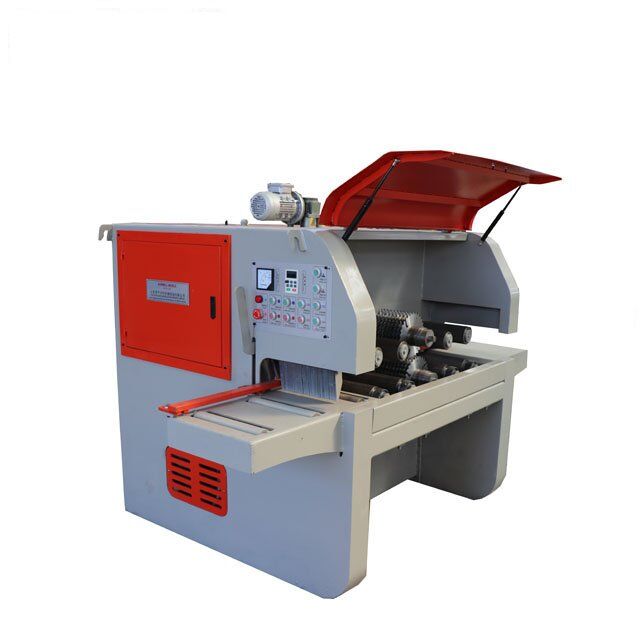

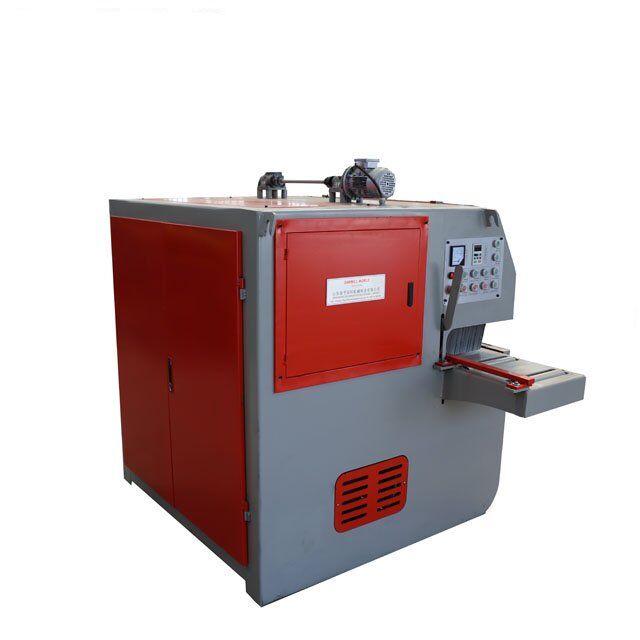

Lumber Multiple Rip Saw
Twin spindle multiple ripsaws are available in cut different sizes of wood into planks to maximise the output of wood for every customer’s needs.
Product Details:
With completely closed, log multiple ripsaws becoming suitable for working as individual sawmills with manual loading, and as auxiliary saw machines into a fully automatic line. Thick frame and robust structure guarantee it’s stable in cutting. It is good at obtaining boards straightly from big plank, thus avoiding repeat cutting. The double spindle makes it easy to saw hardwood no more than 40cm in width.
All buttons are in one control panel Intuitive and clearly convenient for the operator to use.
Two-blade shafts are made of high-strength steel, all blades are made of carbide to cut both very hardwood and softwood.
It is driven by an electric inverter with a variable speed of 3m-10m per minute.
Siemens motors are optional
Additional information
| Max working width | 400mm |
|---|---|
| Max working thickness | 300mm |
| Min working length | 200mm |
| Power | 18.5/22kw, 22kw*2, 37KW*2, 45kw*2, 55kw*2 |
| Blade Size | 280mm Diameter |
| Weight | 3000KG |
