Twin Vertical Bandsaw
The twin vertical bandsaw is a high-productive and reliable mill for small to medium logs diameter up to 20inches(50cm) and 3m in length. It is manufactured for sawing logs into two-side shapes.
Product Details:

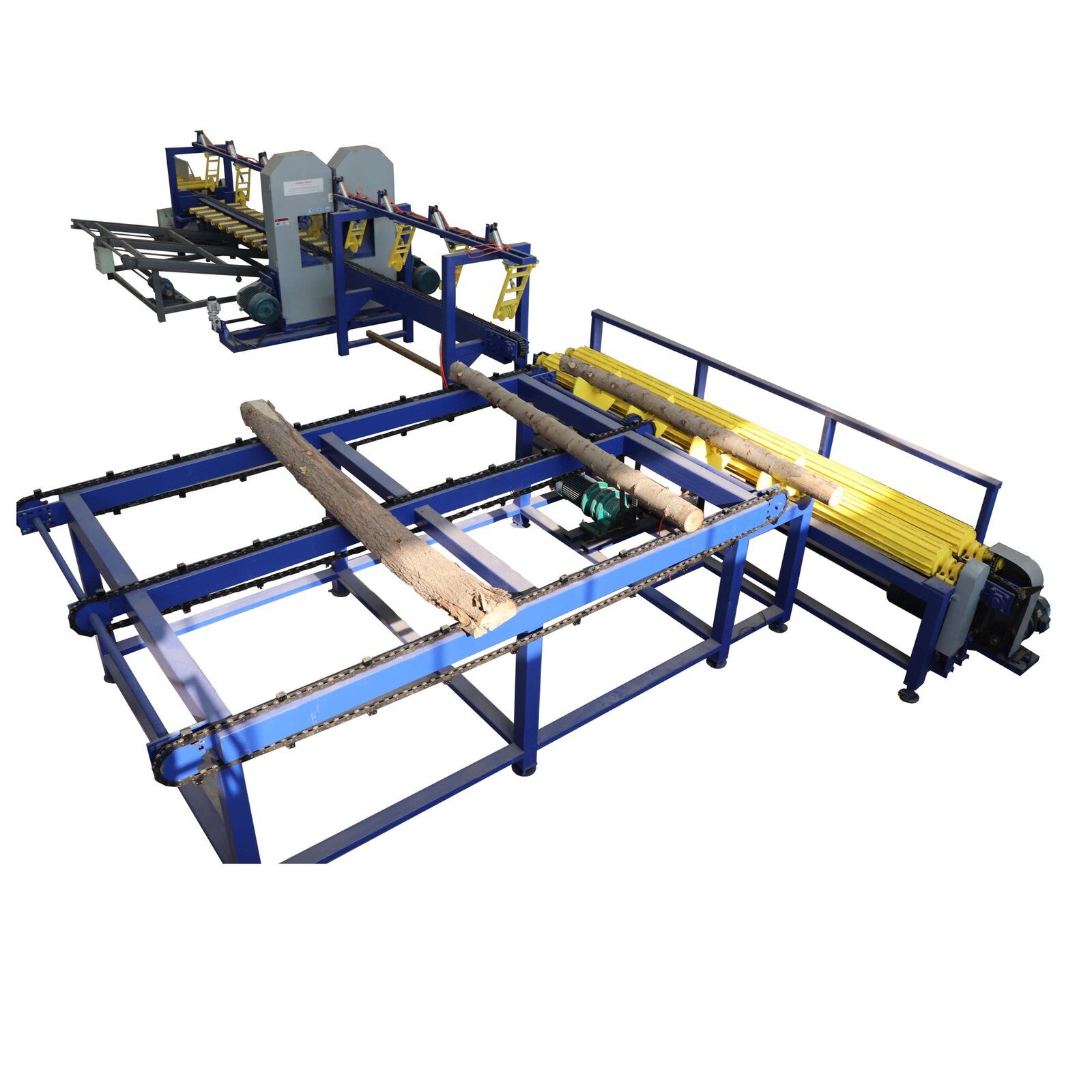

Optional log loading deck help single operator delivery log onto rotation chain and rotate each one in the right position then put it onto feed conveyor.
While crossing through double saw blades, the log is pressed by multiple pneumatical rollers from the top of sawmill to ensure it will be stable in the mill. The operator can choose the demanded cutting size from the touch screen by variable feed speed from 9m-25m/min.
Once through twin blades, the main slab keeps moving under both V-chain&pneumatical rollers for further processing, normally there is Multiple horizontal resaw Or multiple ripsaws in the next cut; slab cutting saw for two dropped slabs.
The twin vertical band saw is ideal for flooring mill, pallet mill and wall mill where need small cross-cutting dimensions.
Features
Fast feed speeds up to 25m/min
Suitable for blades sizes 50mm – 100mm
Log diameters from 100mm – 500 mm
Automated log loading deck
Touch screen size controls
Additional information
| Log Diameter | Min 100mm, Max 350mm of SLS350; Min 100mm, Max 500mm of SLS500 |
|---|---|
| Log Length | Min 1m, Max 3m of SLS350; Min 1m, Max 3m of SLS500 |
| Blade width | 50-80mm of SLS350; 50-100mm of SLS500 |
| Main saw motor | 2×18.5KW of SLS350; 2x22KW of SLS500 |
| Feed motor | 5.5KW of SLS350; 8KW of SLS500 |
| V-chain conveyor length | 7m |
| Feed System | Variable speed 9m-25m/min |
| Setworks | Touch screen computer |
